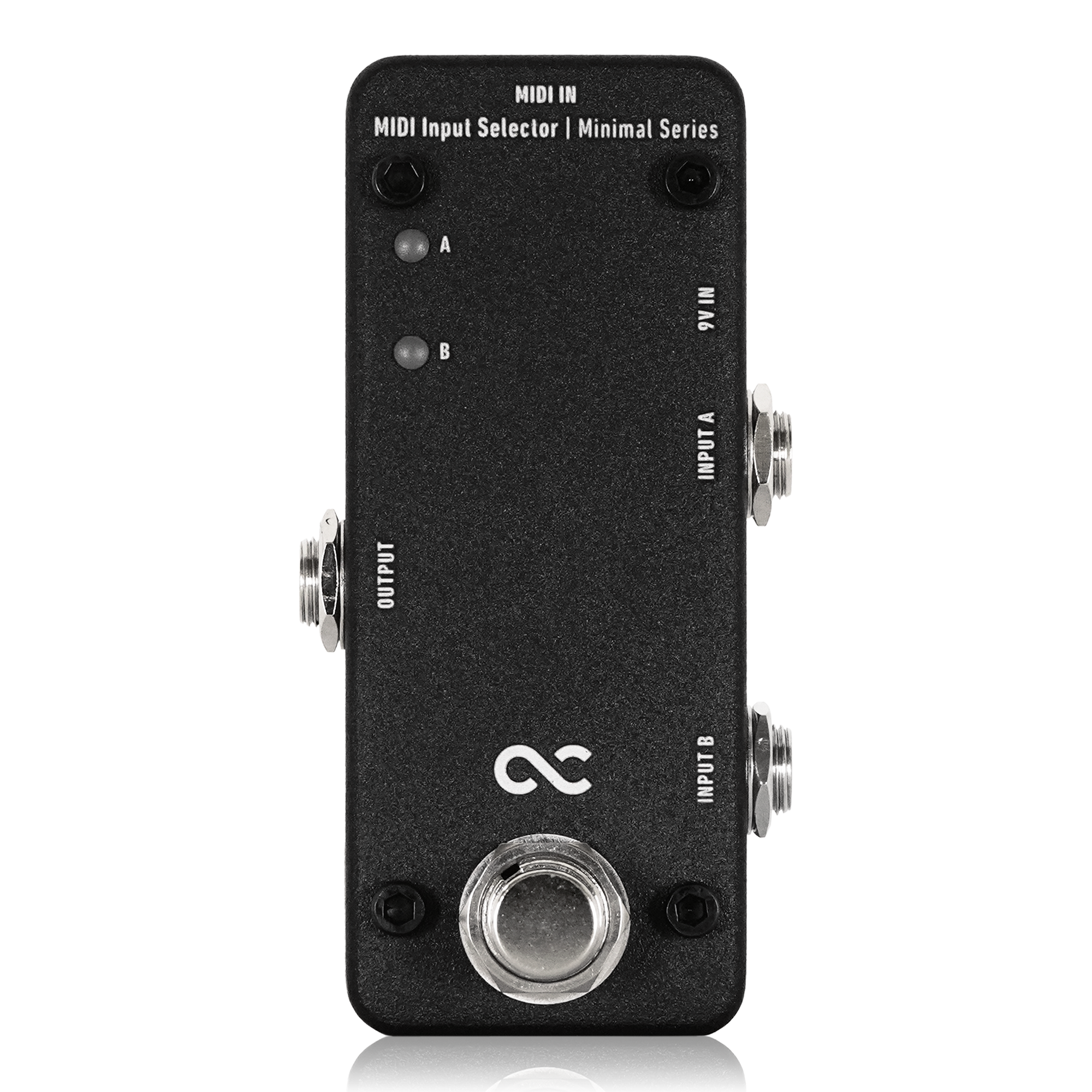

One Control Minimal Series MIDI Input Selector

●Point

- Switch between instrument inputs via MIDI or footswitch
- Can be used as an AB box by using it in the reverse direction
- Supports stereo/mono, with two footswitch modes

The One Control Minimal Series MIDI Input Selector is an input selector that allows you to switch between two guitars, a stereo synthesizer, etc.

Equipped with full stereo input and output. The signal line is true bypass passive, so it can also be connected in reverse to be used as a stereo AB box.

The signal line can be switched using the foot switch on the main unit or a MIDI signal.

You can also switch between different switching modes.

●Foot switch mode

Standard mode: The input terminal switches each time you press the foot switch. (LED red)

Flash mode: The input terminal changes while the foot switch is pressed. (LED is white)

●Switching foot switch modes

・Switch from Standard to Flash mode

1. Turn on the MIDI Input Selector and select the input when the foot switch is not pressed in Flash mode.

2. Turn off the power (remove the adapter).

3. While holding down the foot switch, connect the adapter, press the foot switch so that the LED turns white, then press and hold the foot switch.

・Switching from Flash mode to Standard mode

1. Turn off the power (remove the adapter).

2. While holding down the foot switch, connect the adapter, press the foot switch so that the LED turns red, then press and hold the foot switch.

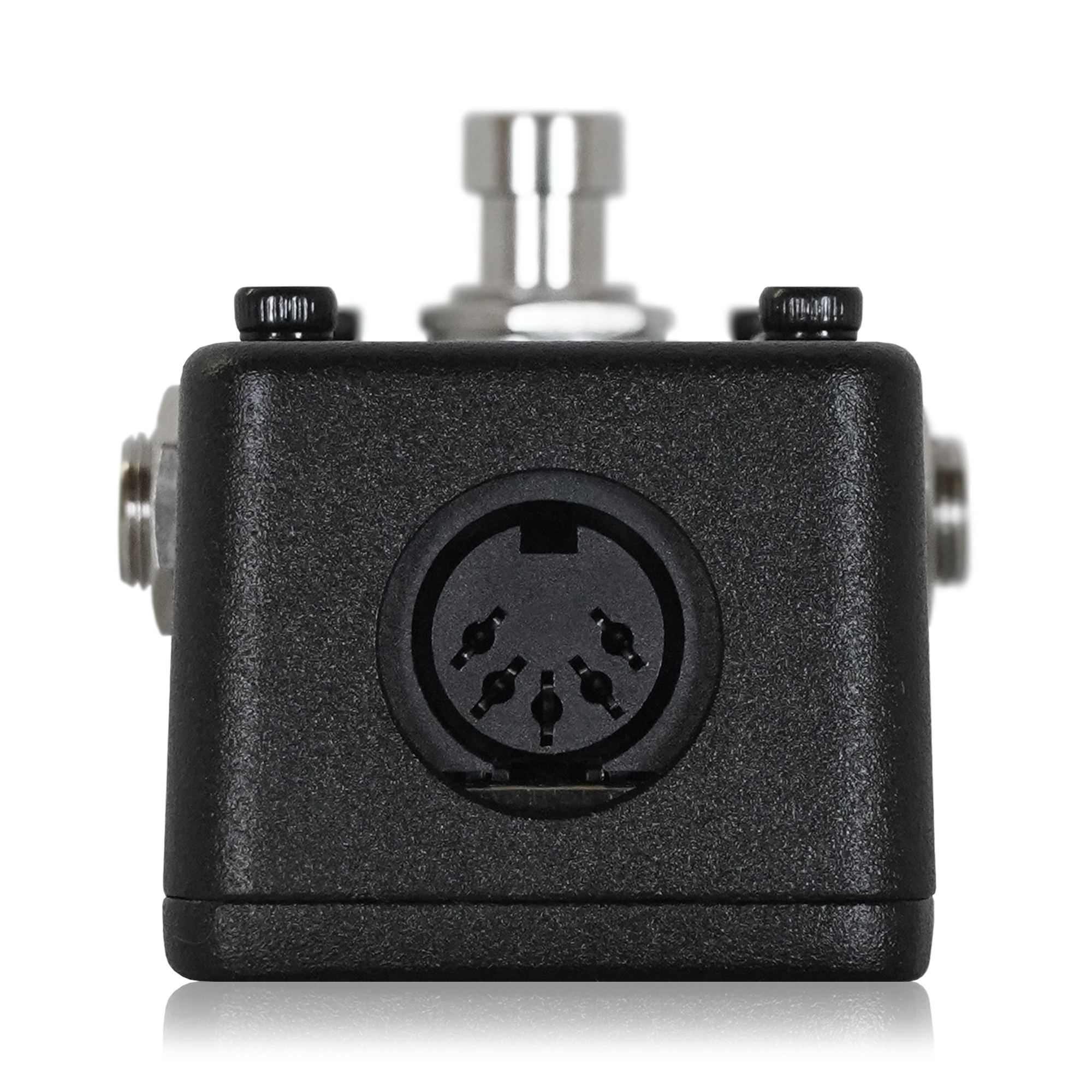

MIDI Control

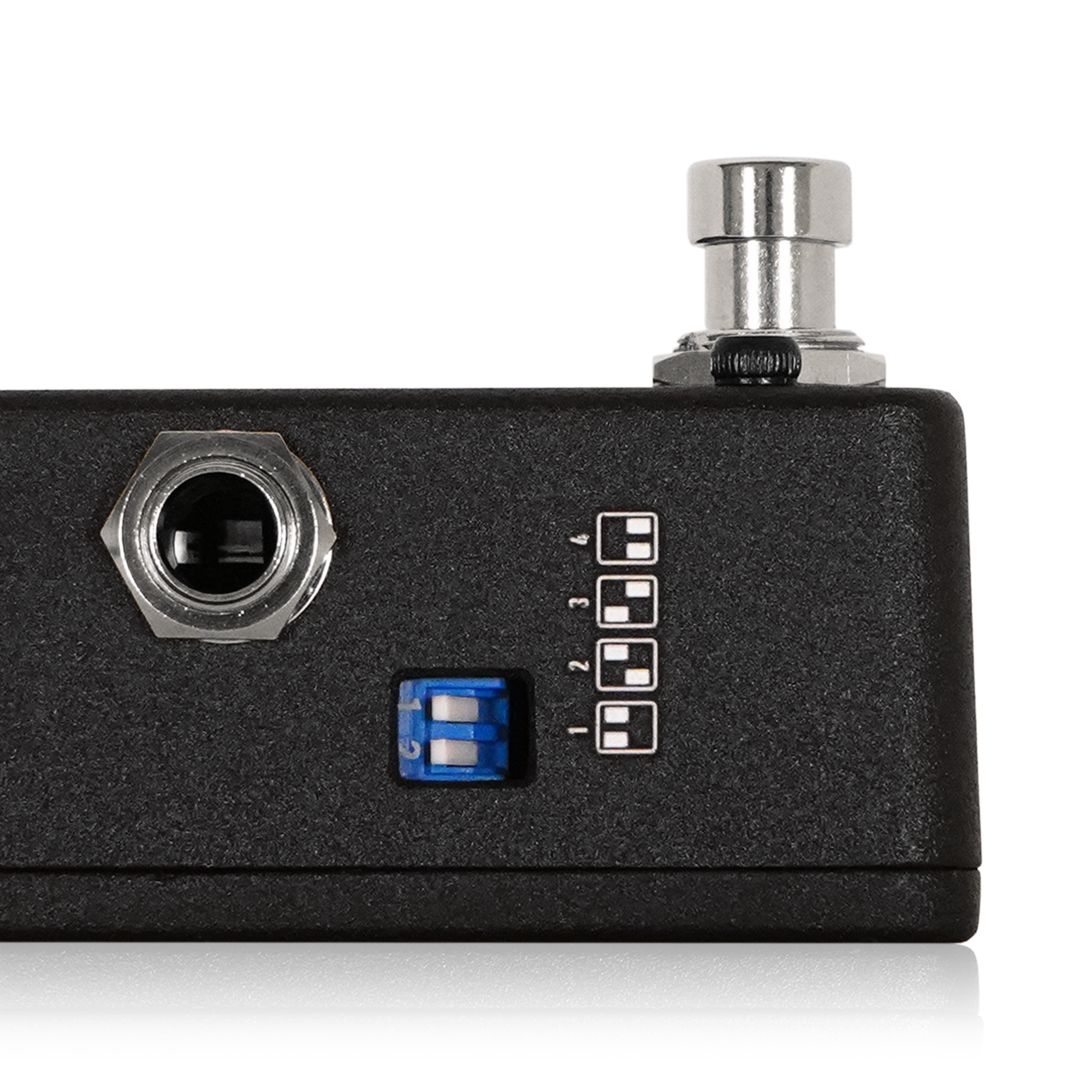

MIDI Channel: Use the DIP switch on the side to switch the MIDI channel to receive.
MIDI PC: PC#0 selects input A, PC#1 selects input B.
MIDI CC: CC#102 values ​​0-63 select input A, 64-127 select input B.

*MIDI PC and CC numbers range from 0 to 127. In particular, MIDI PC numbers may be operated between 1 and 128 depending on the model. In that case, increase the number by one.

*When power is connected, the LED will flash the number of times corresponding to the currently set MIDI channel.

Specifications

Current consumption: 60mA
Size: 35 x 48 x 98mm
Weight: 127g
